Description

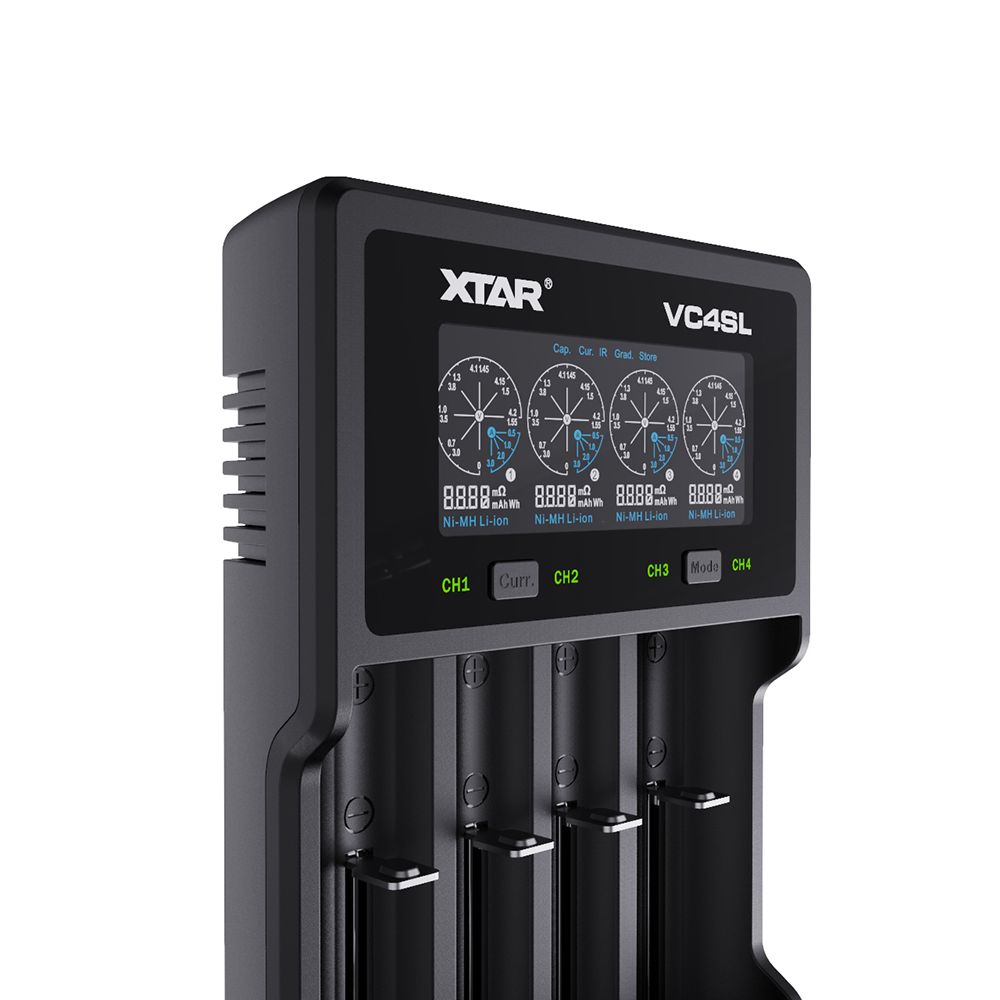

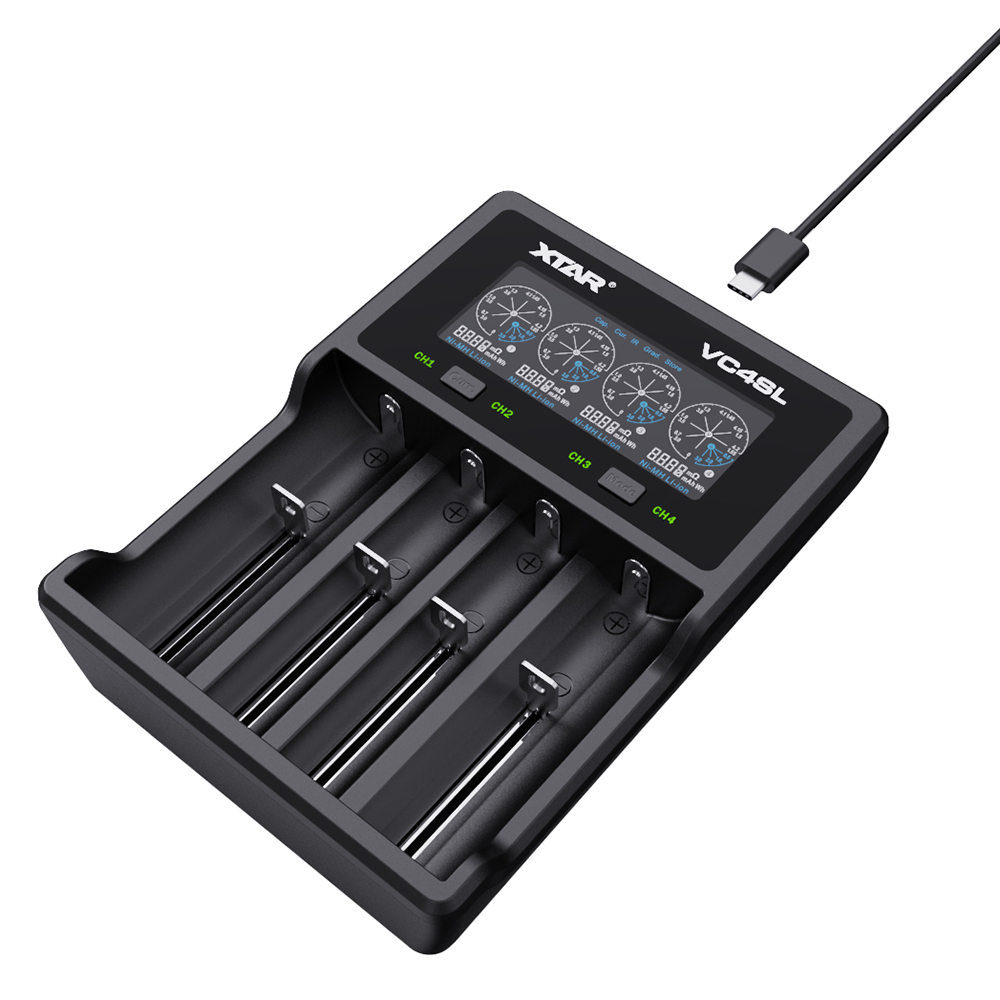

The VC4SL Battery Charger Set from Xtar includes a charger, USB-C to USB-C charge cable and manual, presented in a premium pouch. Designed for use with compatible AAAA, AAA, AA, A, SC, C, and Ni-MH/Ni-CD cells, as well as Xtar 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650, 25500, 26650, 32650 3.6V/3.7V Li-ion batteries, this specialist charger is cost-effective and versatile.
This charger will charge 4 smaller cells or 2 large C cells simultaneously.
With the capacity to charge up to four cells simultaneously or independently, the Xtar VC4SL battery charger is a practical option, while its intelligent design means that it can automatically detect battery types, and select the appropriate charging method and current for them (from 0.1A to 1.0A and up to 0.5A*4 / 1.0A*2 max). It will also notify you if the cells you are trying to charge are faulty or if it detects reverse polarity.

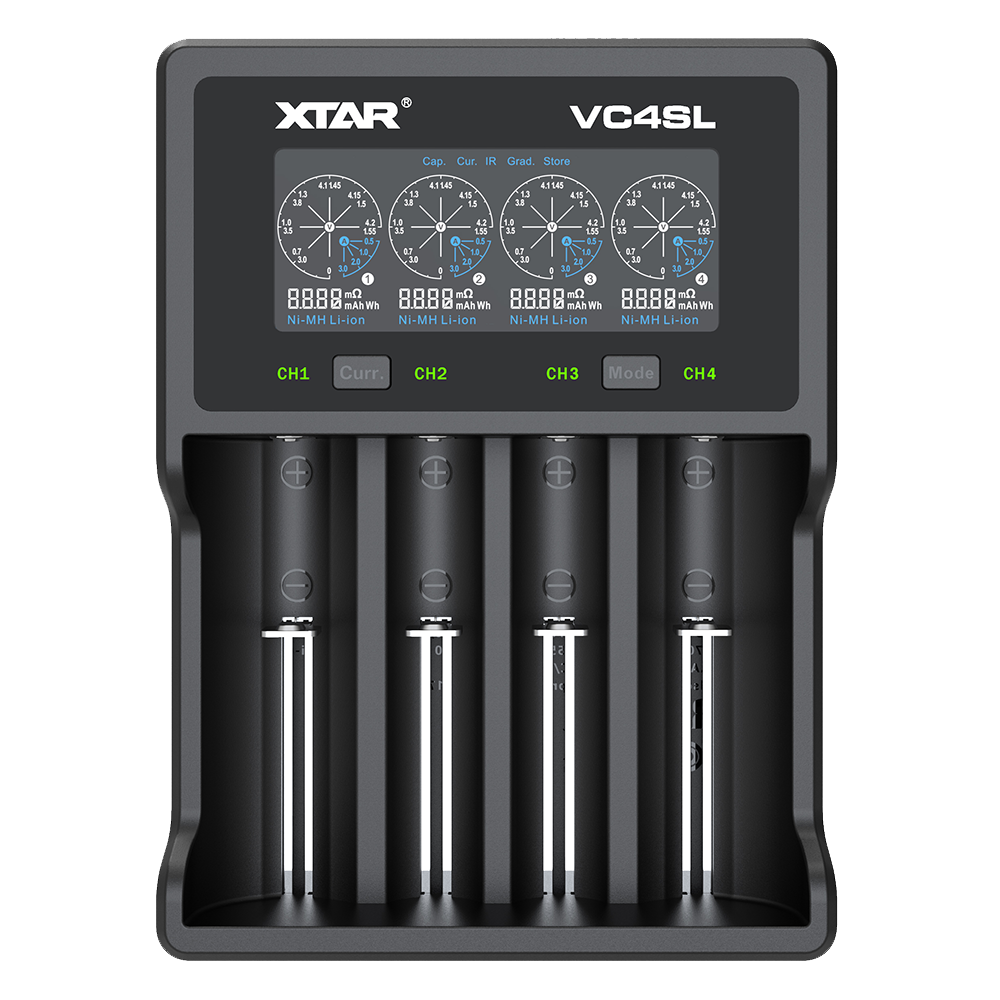

The Xtar VC4SL charger's cycle has three stages to prolong the life of your cells, and a soft start to minimise drain and damage from sudden energy spikes. Dependable and safe, it also has an accurate LCD display.
The maximum number of batteries which can be charged simultaneously is dependant on the type of battery used.
Charging current and maximum supported battery capacity Information
- AA/AAA 1.2V Ni-MH charging current: 2A × 1 / 1A × 2 / 0.5A × 2 (applies when charging 1–5 batteries)
- AA/AAA 1.5V Li-ion charging current: 2A × 1 / 1A × 2 / 0.5A × 2 (applies when charging 1–5 batteries)
- Max capacity: No limit — charger detects full charge via battery voltage; display caps at 9,999mAh but full charging is unaffected.
This charger does not come with a wall adaptor and we recommend adding the 'optional bundle' when purchasing. This charger cannot be powered by a low power mobile phone charger and needs a 15W or 3A wall adaptor like a USB-C laptop or large tablet adaptor.
Technical Info
EAN Number:
6952918320364
Manufacturer:
Xtar
Weight (g):
314
Maximum Charging Current:
0.5A, 1A, 2A
Charging Currents Supported:
2A
Compatable Batteries:
3.6V, 3.7V Li-ion: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650, 32650 & 1.2V Ni-MH/Ni-CD: AAAA, AAA, AA, A, SC, C
Brand:
Xtar
Batteries Included:
No
Product Type
Battery Charger
International Plug:
No
SKU: XTA-CH-02763
Barcode / EAN / UPC: 6952918320364
Weight: 314g
Commodity/Tariff Code: 85044055
Country of Origin: China (CN)
